MC-EDGE RTU & GATEWAY UNIT

Newest Motorola RTU based on SITARA Cortex with Linux Embedded OS bringing to the market the true advantage of real time Linux operating system incorporated with proved OSI 7 layers protocol communication! MC-EDGE designed to replace ACE1000 & MOSCAD-M while introducing the latest development in communication and web technologies.

Motorola MC-EDGE like legacy RTUs designed to target SCADA & IoT applications however unlike MOSCAD-M is equipped with IEC61131 standard programming interface and portable Linux C language while supporting the same old versatile Ladder Database mapping. Supporting multiple I/O modules and up to date embedded radio technologies of LoRa & LTE. Motorola RTU was never so easy, fast or intuitive!

COMMUNICATE EFFORTLESSLY

The native communication protocol is based on the OSI (Open Systems Interconnection) model published by ISO while working over P25 or any other media. The protocol is capable of handling both small (single-frame) and large (multiple frames) quantities of data. A “mini-session” feature enables to “fire” short messages up to 160 bytes on a single frame (can be increased to 2K bytes) when dealing with short messages such as commands, measurements and discrete statuses.

On the other hand, at the same time, it can be used to transfer large quantities of information, such as downloading applications, database tables, and processes at the same time using the “Session” feature. The protocol works over all media supported such as Main board RS232/RS485 Half/Full Duplex with/without CD, Plug In (Optional) Isolated 2xRS232 or P25 radio. Motorola ACE1000 is ready to support future WAN, WIFI and CAN bus protocols and media to extend the communication capabilities furthermore.

SEAMLESS CONFIGURATION

No application programming software is needed to program ACE1000 but web browser accessing the “Easy Programming Tool”. No programming skill or training is required too. Functionality of the “Easy Programming Tool” applications can be expanded easily using C application over Linux, IEC61131-3 or Motorola STS to allow seamless integration into existing MOSCAD, MOSCAD-L, MOSCAD-M and ACE3600 based systems. MOSCAD-M C application can be upgraded easily for use on ACE1000 RTUs.

Due to use of native protocol, RTU can be programmed, configured and maintained locally and remotely over any media or communication network. Motorola ACE1000 Front End Processor (FEP) as a system configuration tool enables to configure the entire system, collecting automatically RTUs data at run-time and provide it to the SCADA through MODBUS open protocol. Automatic SCADA TAG generation enable easy deploy of any SCADA SW database.

Specifications

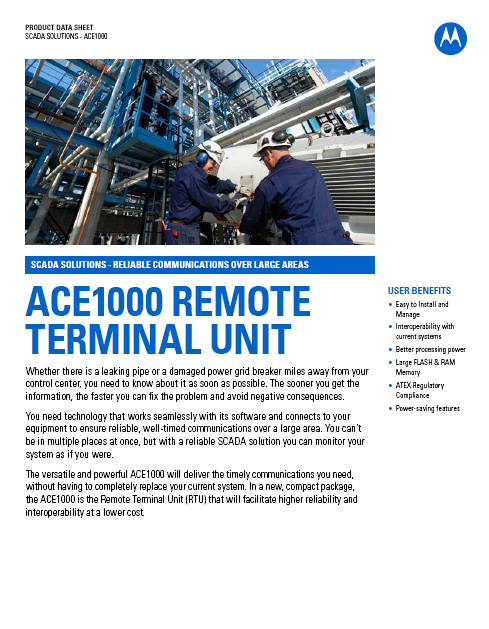

Downloadable Specification Sheet

Download Sheet

Features

WEB Configuration tool

Easy and intuitive GUI
Web-based planning tool
Plug & Play system bring-up
Easy Programming: Rule-based logic definition
Support of ACE1000 RTU & FEP

Key Features

On-board CPU I/O signals
IECEx/ ATEX – EXnA IIC T4 (Cat 3/Zone 2)* Regulatory Compliance
Sleep mode and Power-saving features
Built-in Easy Programmer
No Application development environment

Detailed Features

Din Wall| Mounting Bar
CPU I/Os:
THREE Digital Inputs (DI) Wet inputs
De-bouncing filters
ONE Digital Output (DO): Form C ( SPDT)
Hardware back indication
Support up to 1A
Power
Input voltage range: 9-30 VDC
AUX output voltage

With an effective use of cutting-edge technology and support services, ace1000 is the ultimate choice to deliver the most advanced communication features outcome. We can assist in design, support, sales and programming and, installation unlike distributors who have no skills to support this line of products. So, if you are looking for a reliable solution provider for MC-EDGE, then PIZOGA strives its best to outpace the expectation of customers, partners and clients. Our team assures that you will always receive the ultimate performance with this unit with the best available technical support available in the market. Please see ACE1000 powerpoint.
